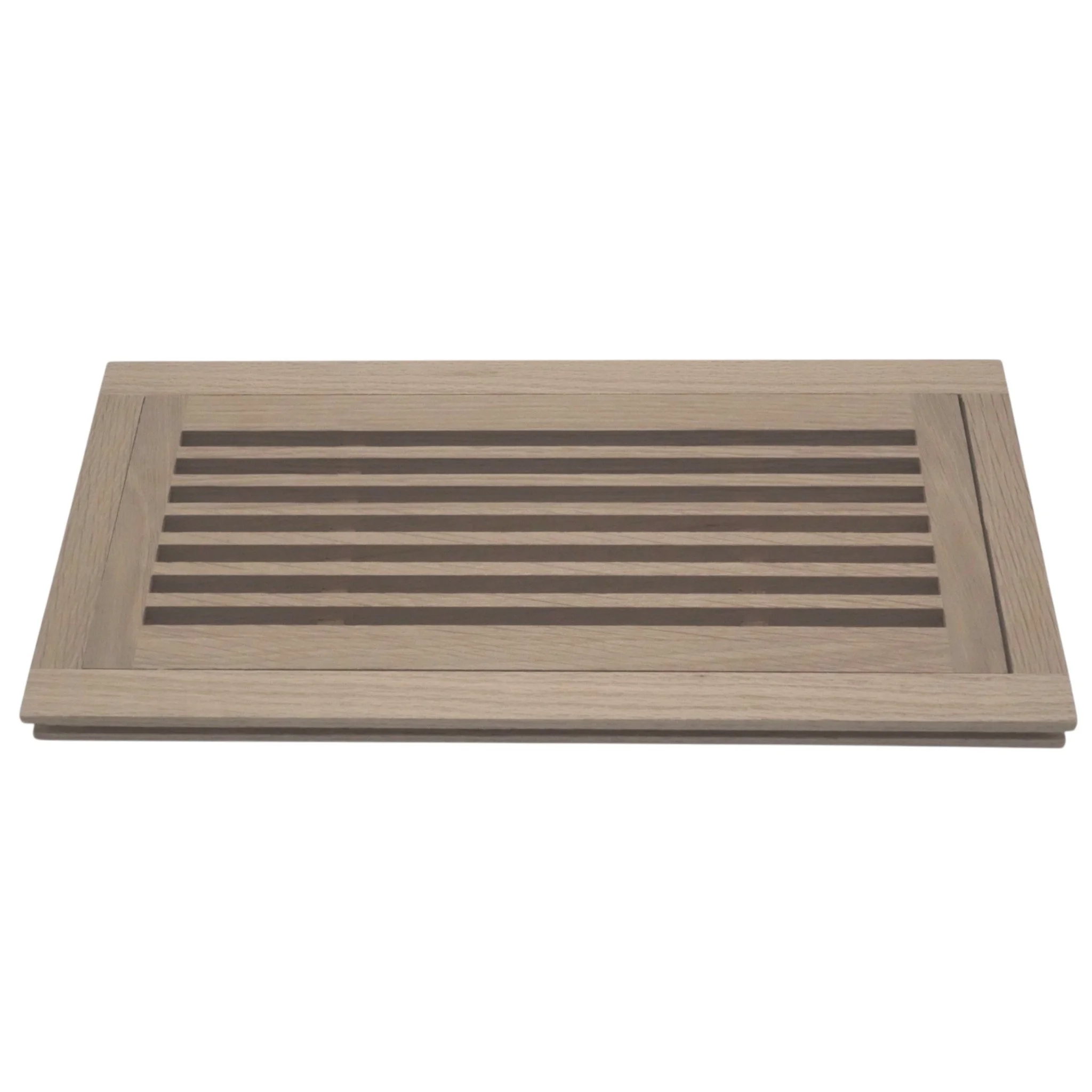

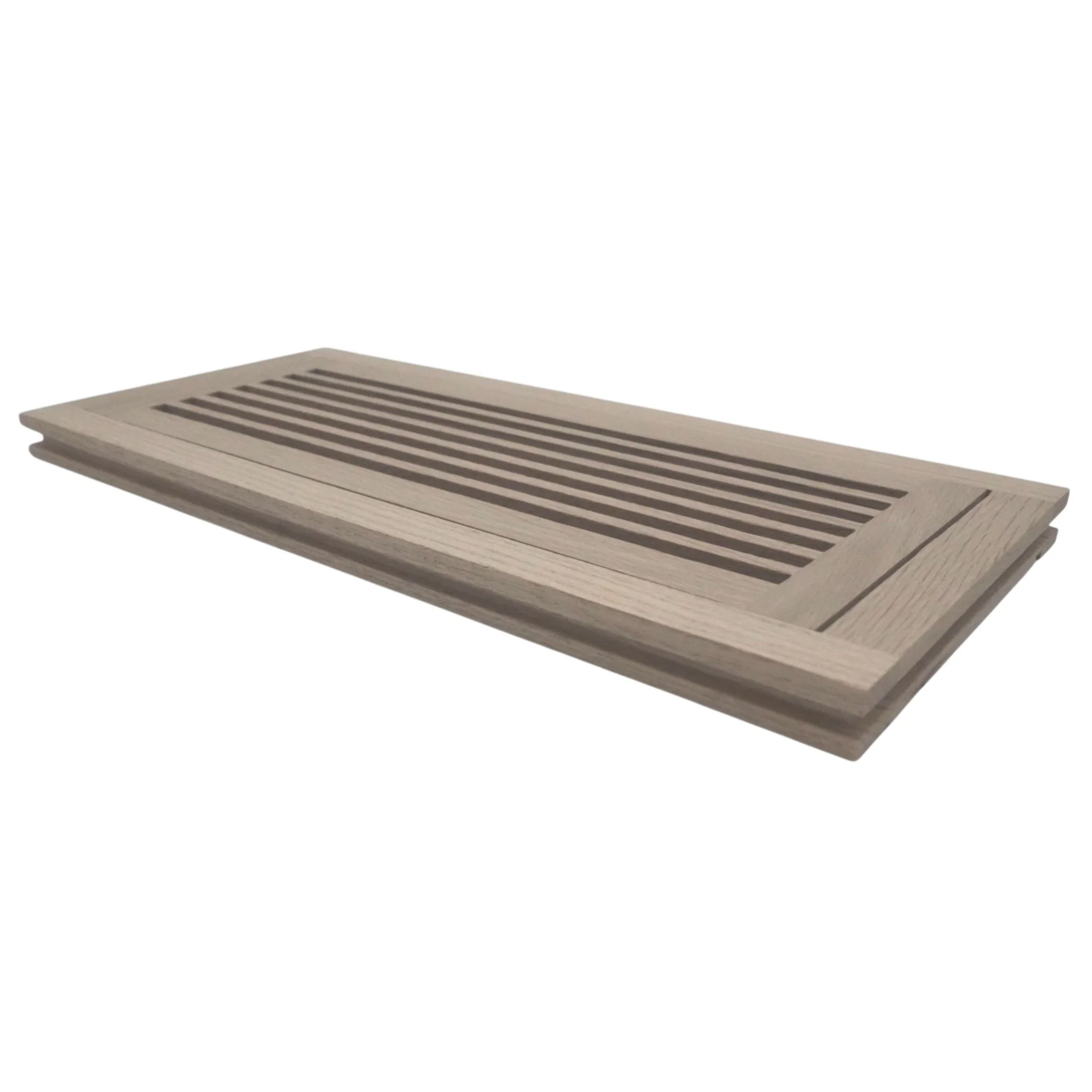

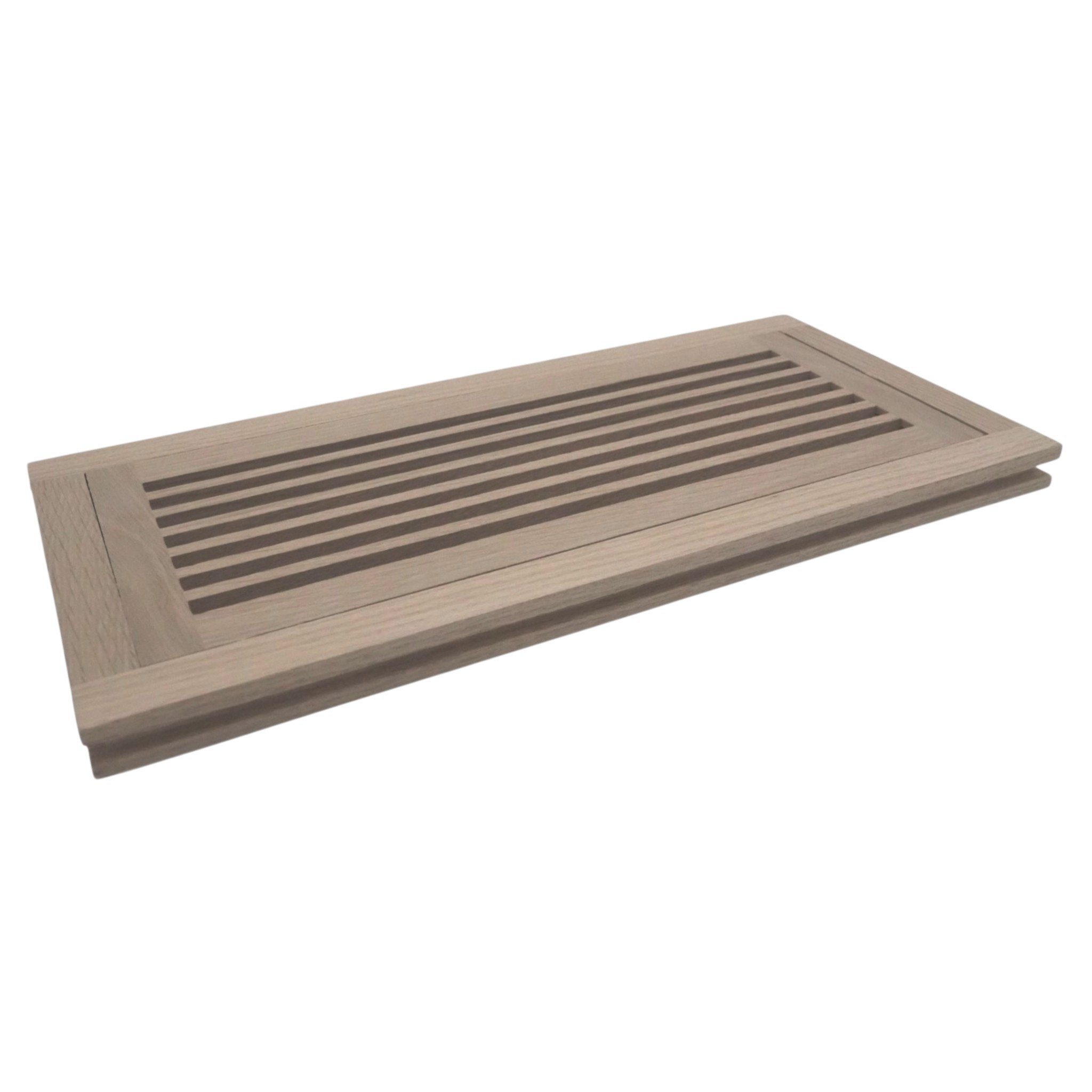

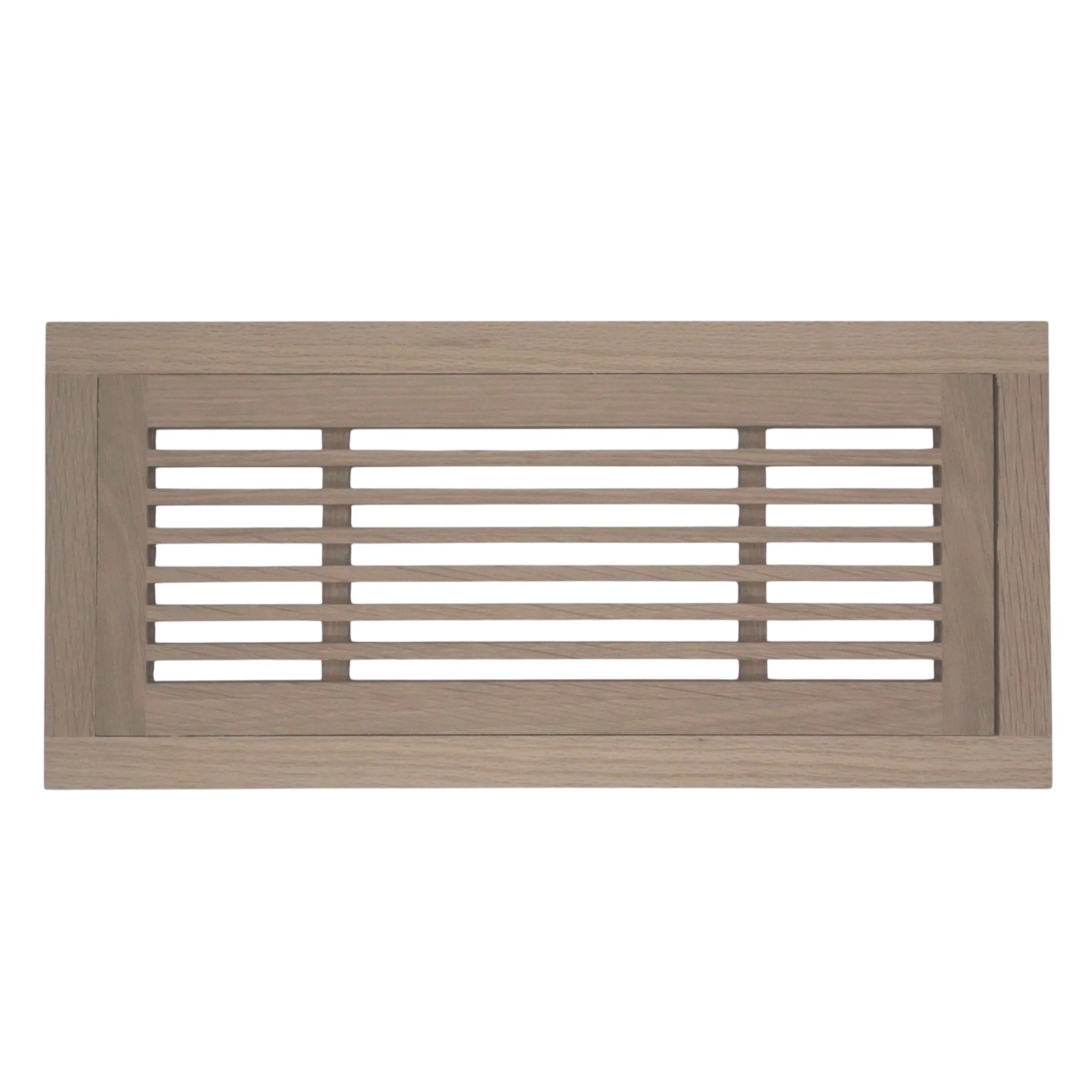

Modern Linear: Flush With Frame

Duct Opening Overall Dimensions
Flush With 90° Corners Flush With 45° Corners
2-1/2 x 10 4-1/2 x 11-13/16 5 x 11-13/16
2-1/2 x 12 4-1/2 x 14-1/8 5 x 14-1/8
2-1/2 x 14 4-1/2 x 16 5 x 16
4 x 8 6-3/4 x 10-1/4 6-3/4 x 10-1/4
4 x 10 6-3/4 x 12-1/4 6-3/4 x 12-1/4
4 x 12 6-3/4 x 14-1/2 6-3/4 x 14-1/2
4 x 14 6-3/4 x 14-1/2 6-3/4 x 14-1/2
6 x 10 9 x 12-1/4 9 x 12-1/4
6 x 12 9 x 14-1/2 9 x 14-1/2
6 x 14 9 x 16-1/2 9 x 16-1/2

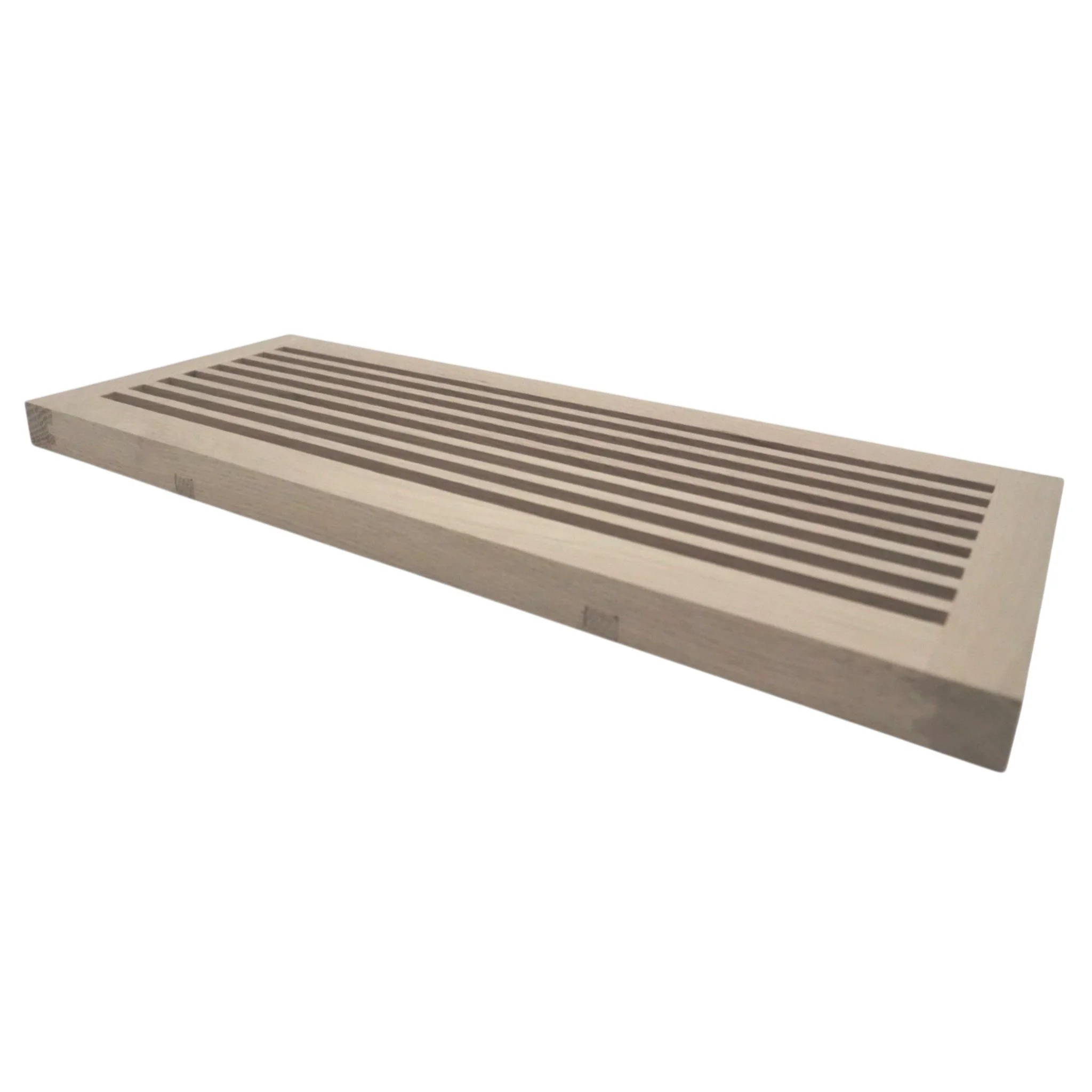

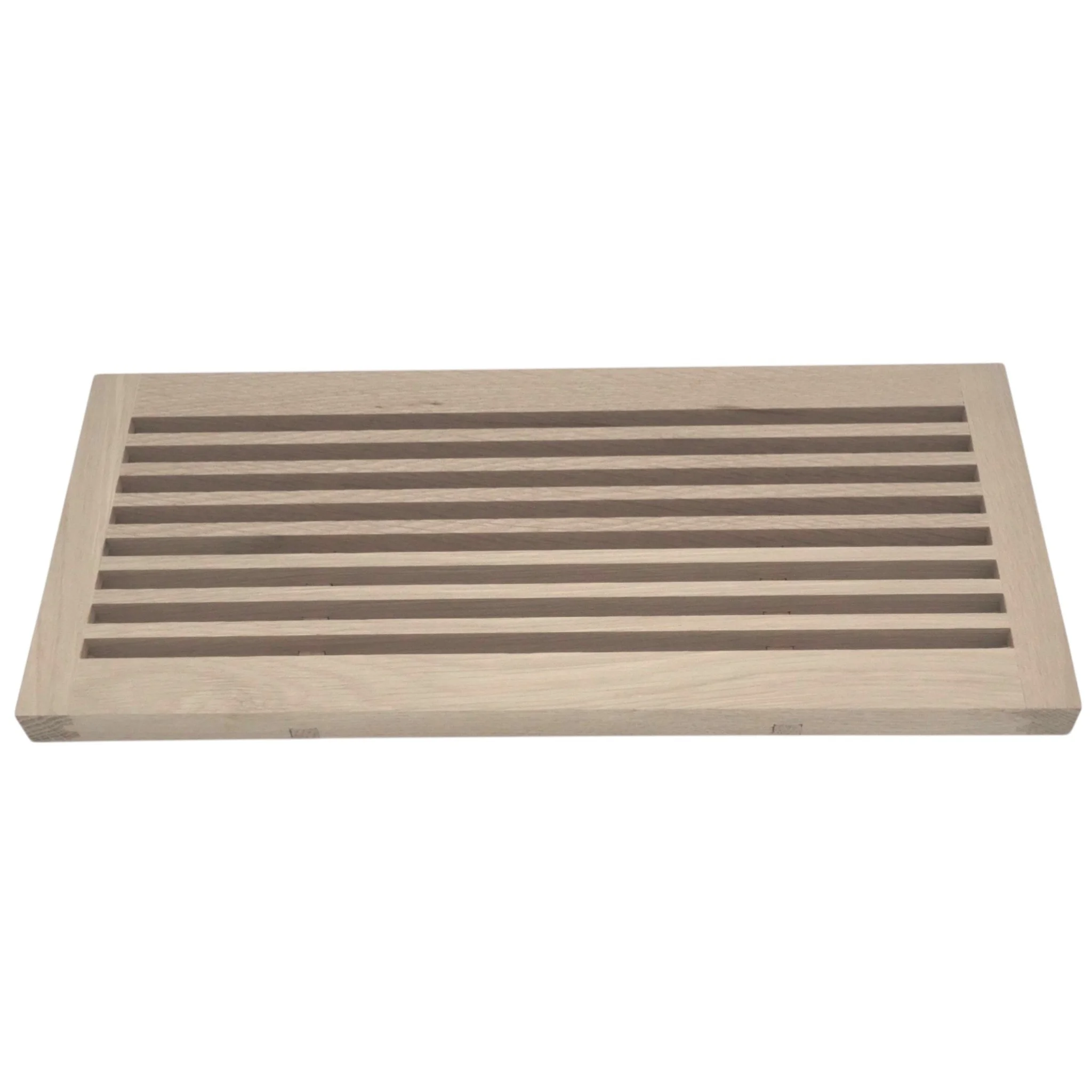

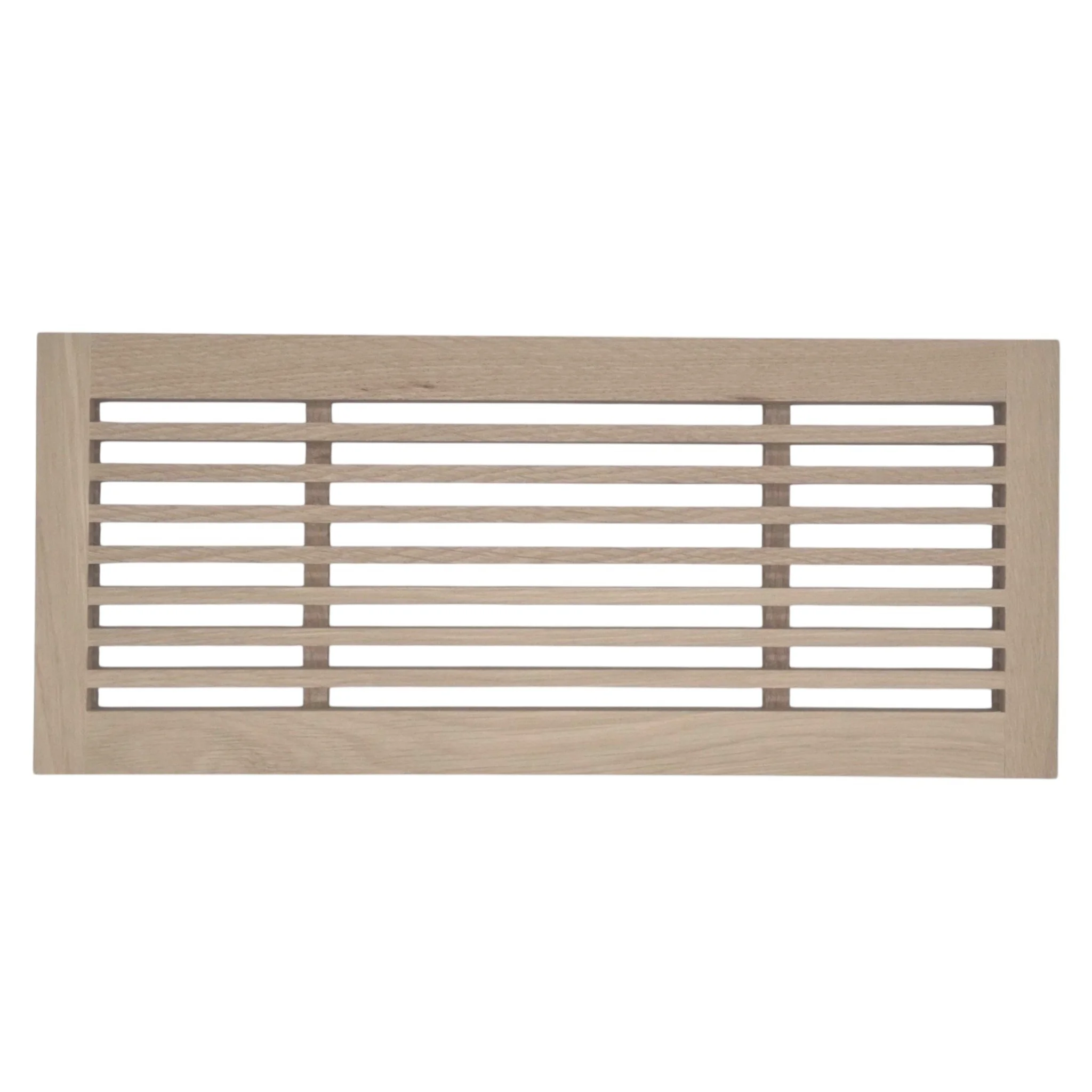

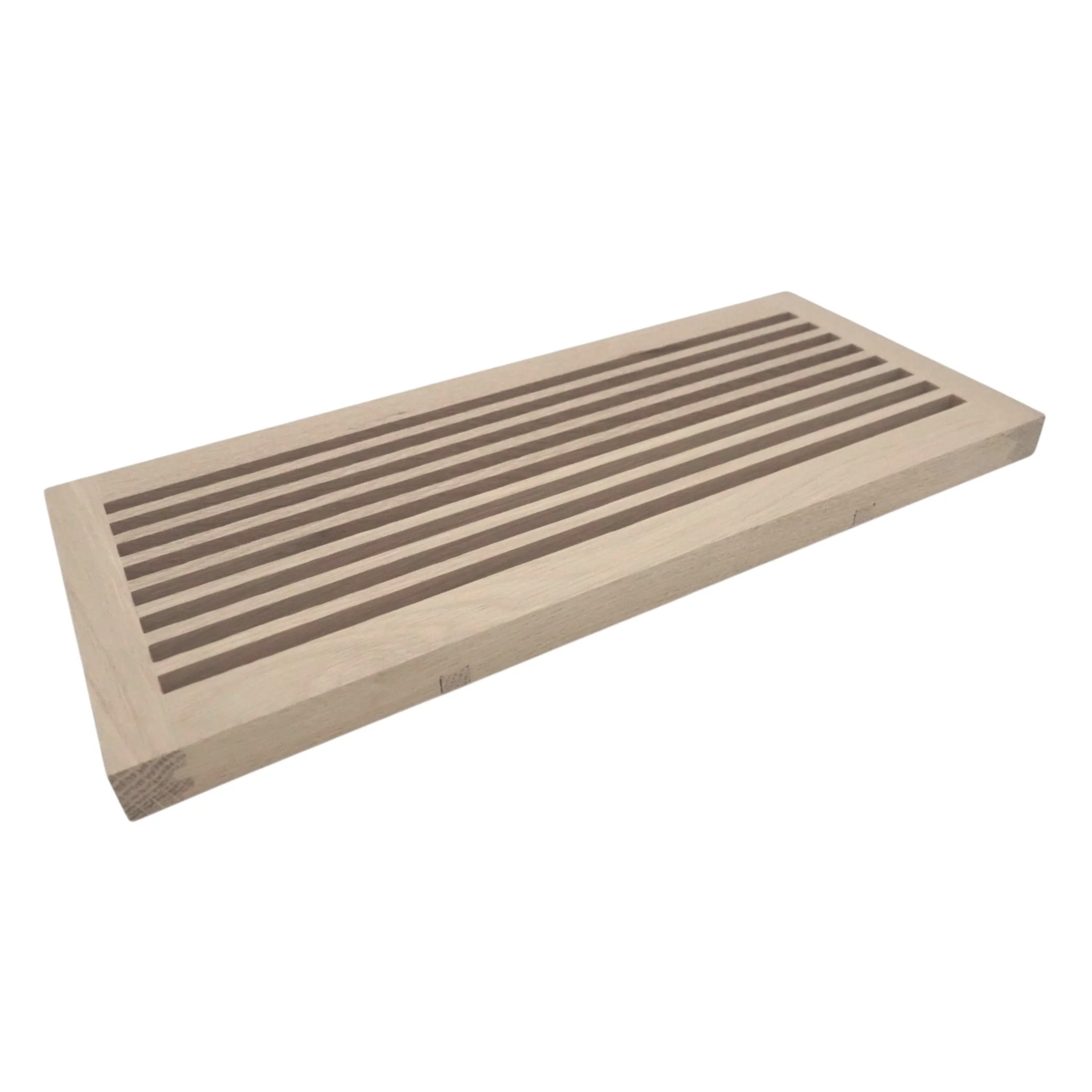

Modern Linear: Flush No Frame

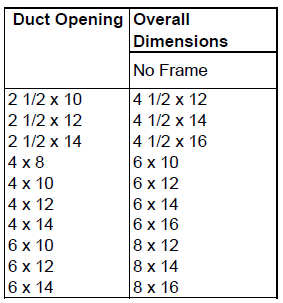

Duct Opening Overall Dimensions
Flush No Frame
2-1/2 x 10 4-1/2 x 12
2-1/2 x 12 4-1/2 x 14
2-1/2 x 14 4-1/2 x 16
4 x 8 6 x 10
4 x 10 6 x 12
4 x 12 6 x 14
4 x 14 6 x 16
6 x 10 8 x 12
6 x 12 8 x 14
6 x 14 8 x 16

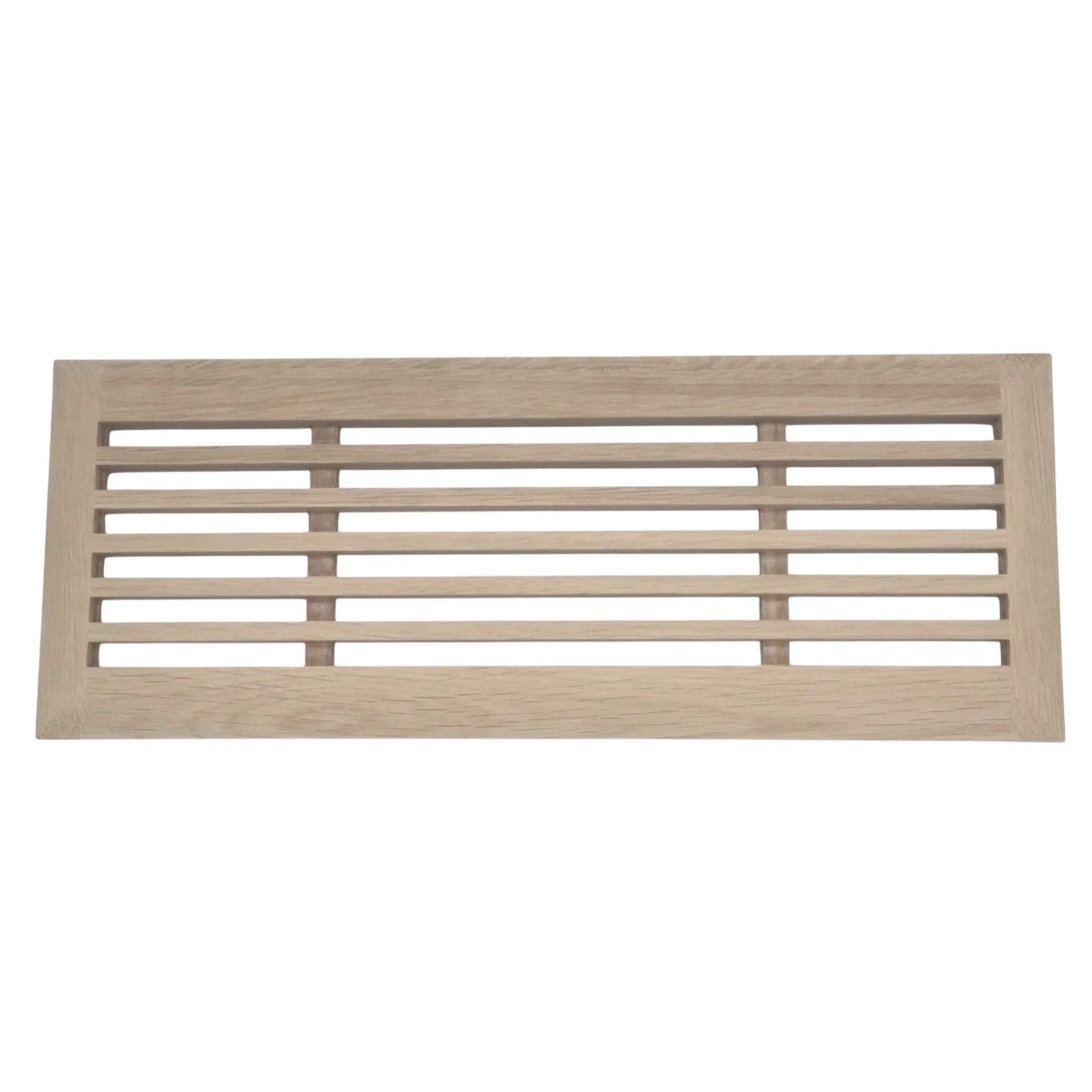

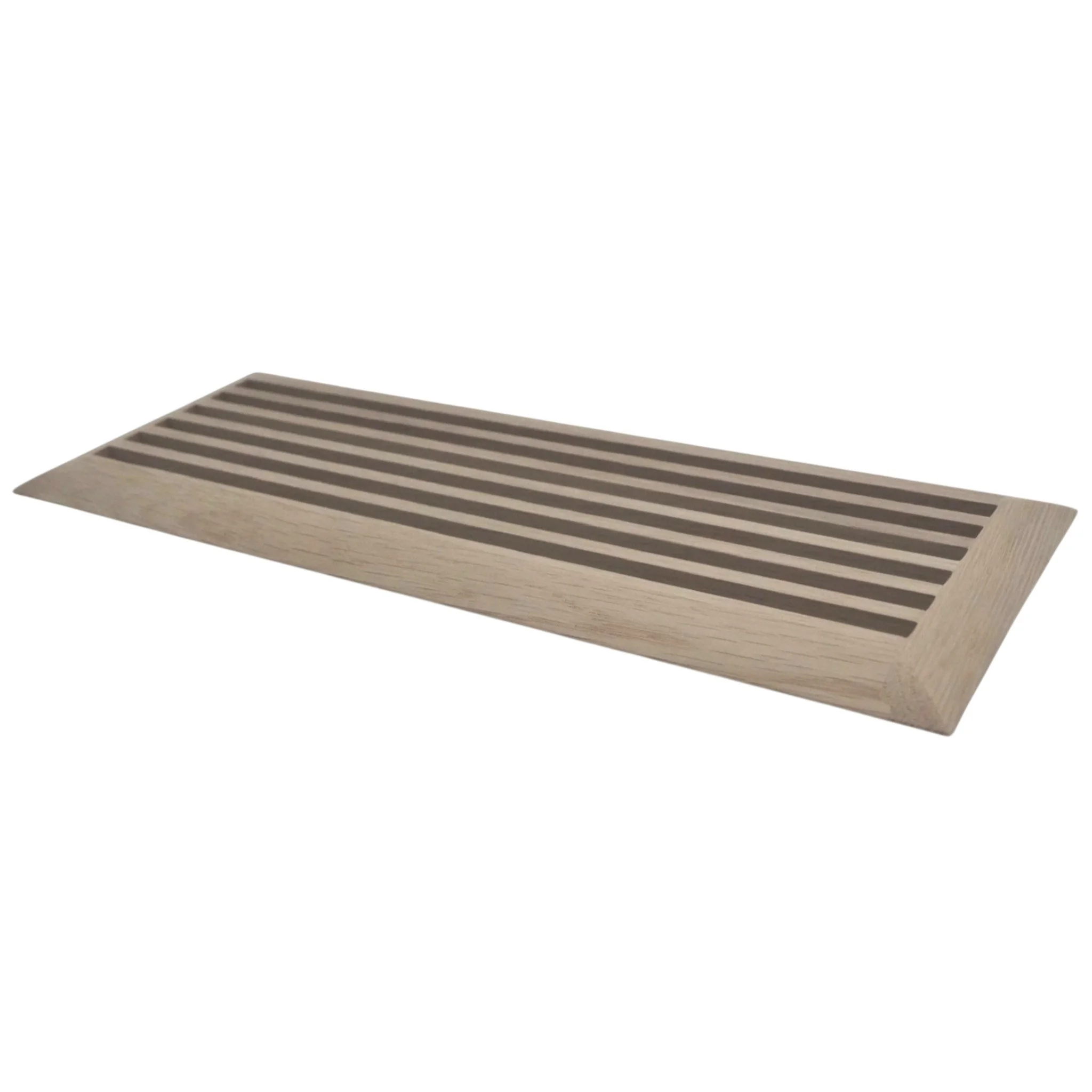

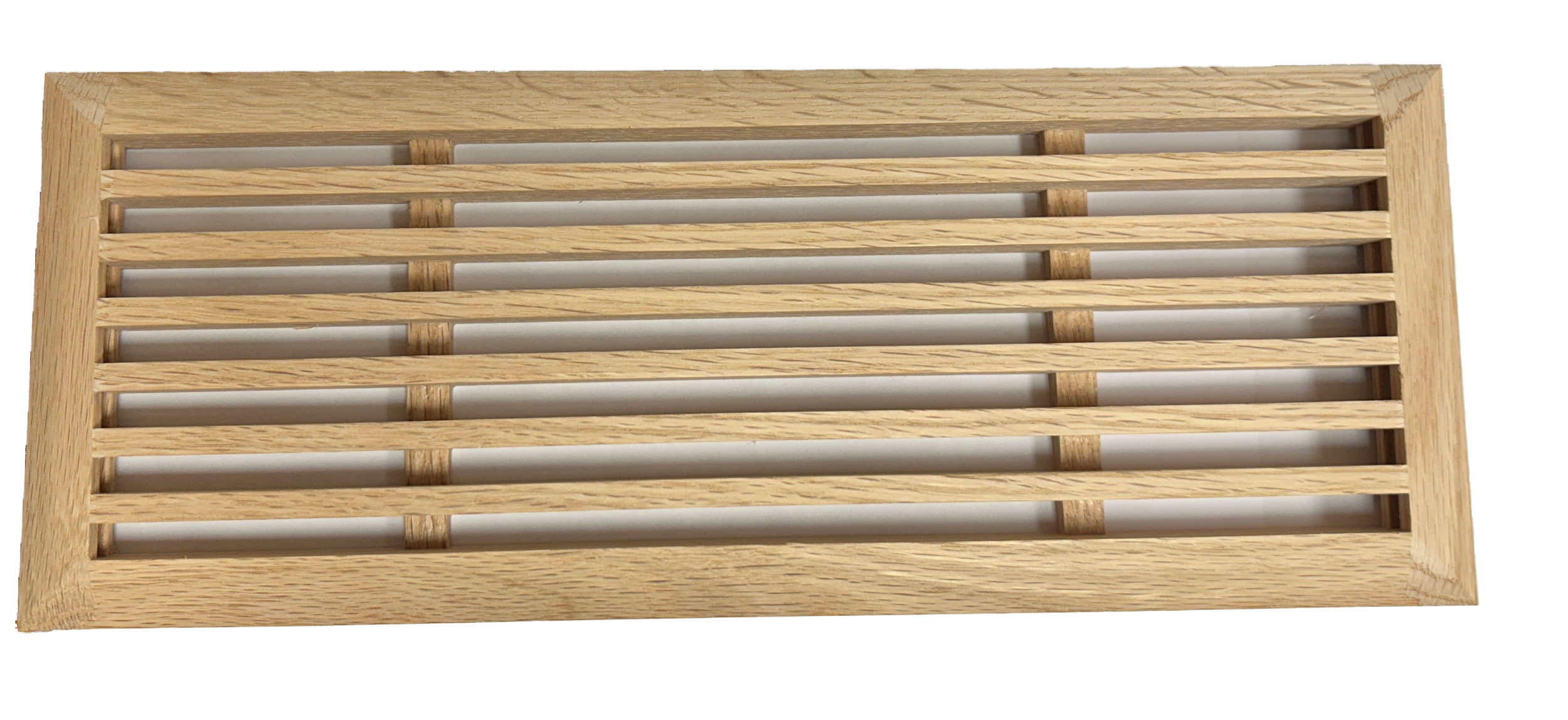

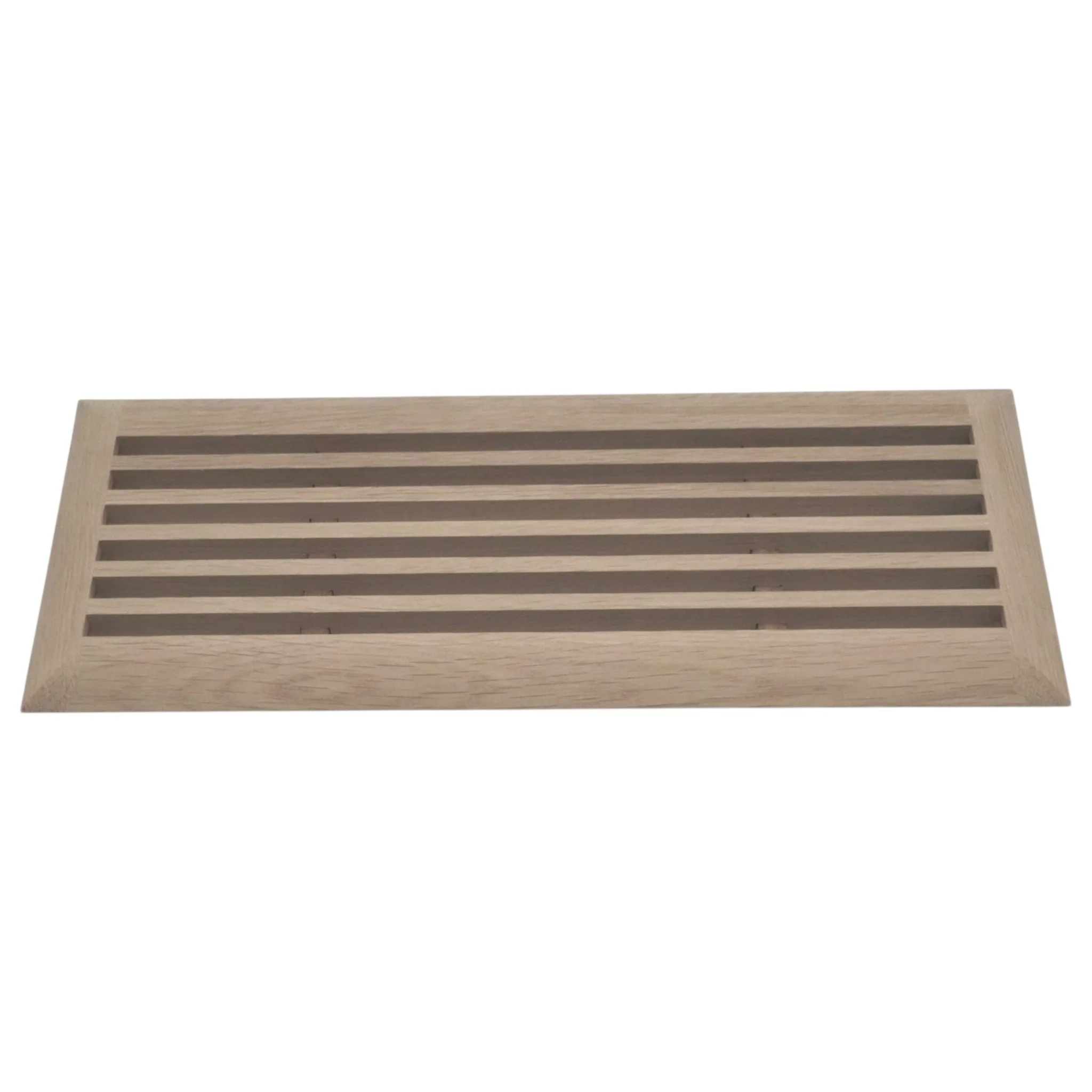

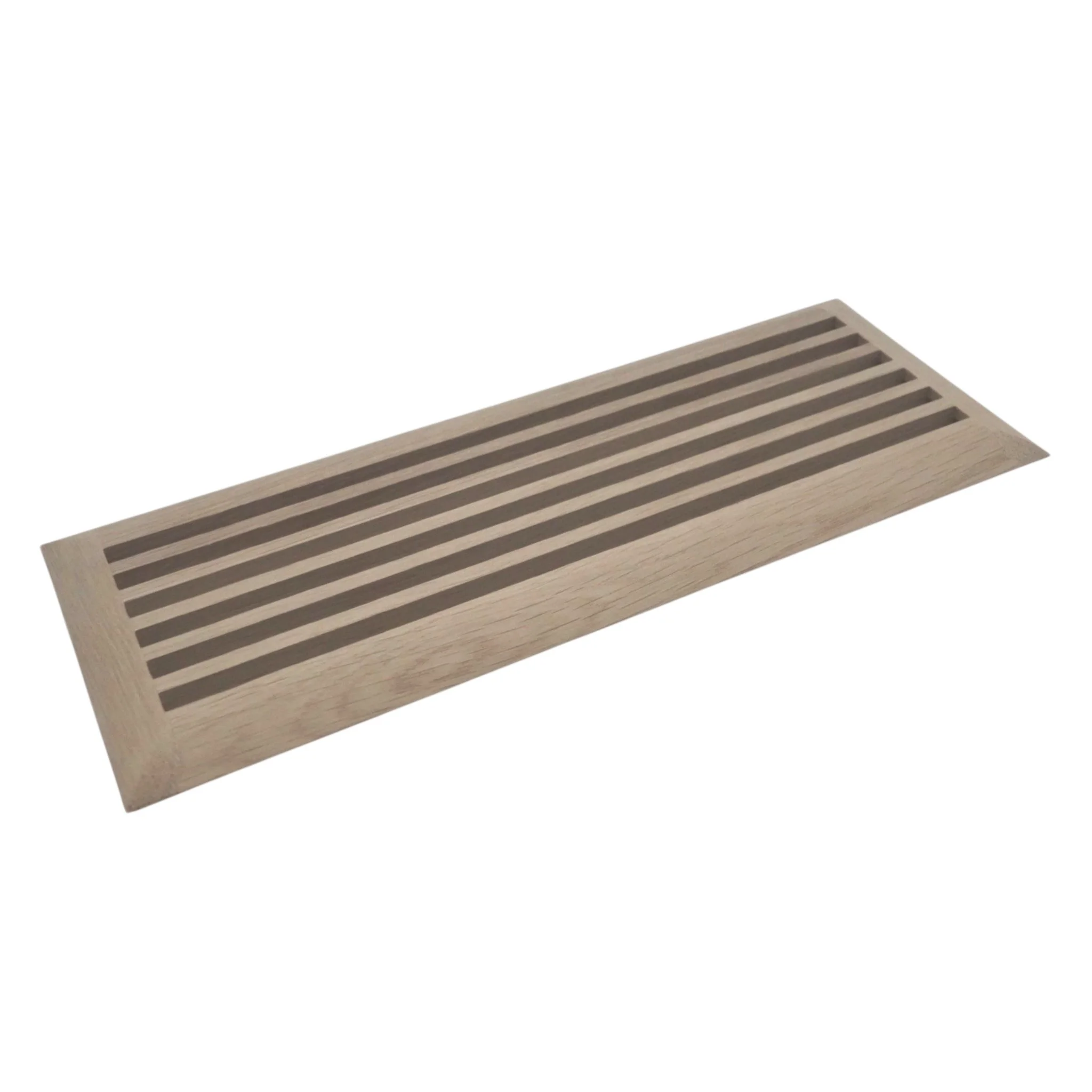

Modern Linear: Insert

Duct Opening Overall Dimensions
Insert
2-1/2 x 10 4-1/2 x 11-1/2
2-1/2 x 12 4-1/2 x 13-1/2
2-1/2 x 14 4-1/2 x 15-1/2
4 x 8 5-1/2 x 9-1/2
4 x 10 5-1/2 x 11-1/2
4 x 12 5-1/2 x 13-1/2
4 x 14 5-1/2 x 15-1/2
6 x 10 7-1/2 x 11-1/2
6 x 12 7-1/2 x 13-1/2
6 x 14 7-1/2 x 15-1/2
